Auto stacker
Description of Auto stacker for roll forming machine:
This machine can make delivery, loading, stacking, output automatically and it is an ideal matching machine. In order to save human resource, howe the labor cost, it is better to work with hydraulic uncoiler, colored steel mould machine, which form a complete producing line.
This machine is compose of feed device,stacker, pneumatic device, store table, electric control system.
Main technical parameters:
1. Install size: 7000mm*4200mm*1600mm(6m)
2. Pneumatic system: air pump (active air sourse) user equiped
3. Delivery system: reducer bearing delivers material atomatically when steel cutten
4. Motor power: 2.2 KW
5. Store table: to store products
6. It can move left to right by reducer
7. motor power: 2.2 KW
8. Electric control system: deliver and stack automatically
9. Model: 6m/12m
10. Stack thickness: Max. 300mm

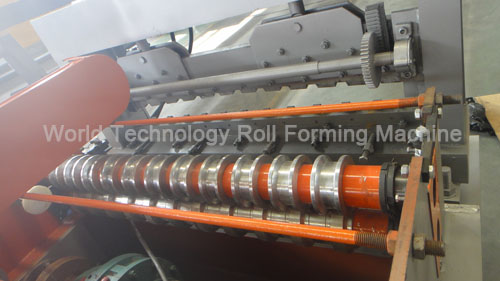

Automatic roof panel roll forming machine

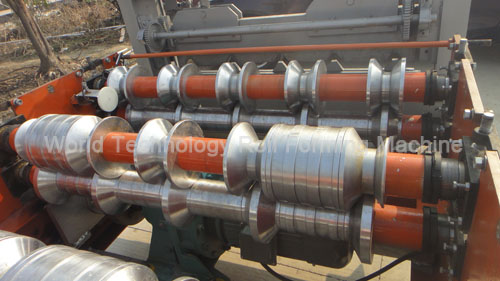

Cold roll former

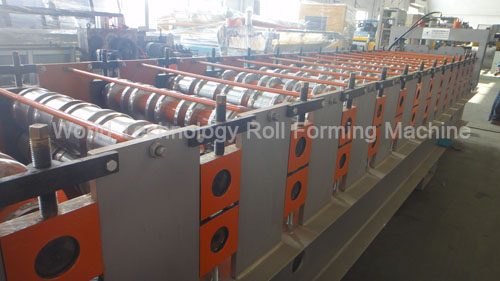

Cold roll forming machine

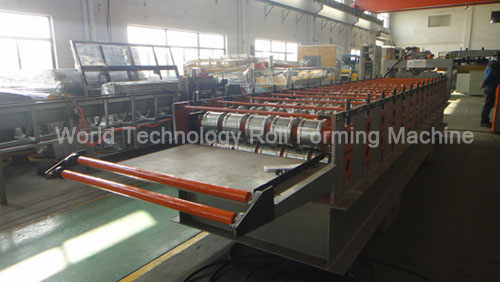

Main roll forming machine

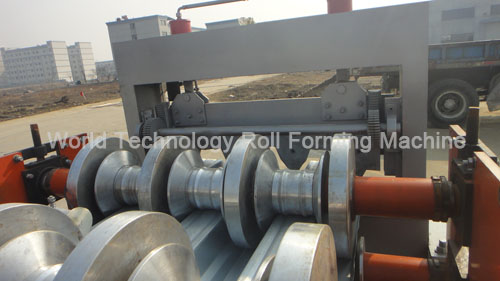

Metal panel roll forming machine
