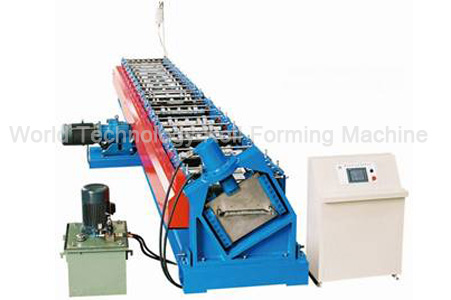

Description of anode plate roll forming mill:
The line is composed by loading car, uncolier, guiding & feeding device, roll forming machine, cutter, automatic stacker, hydraulic system, electric control system.

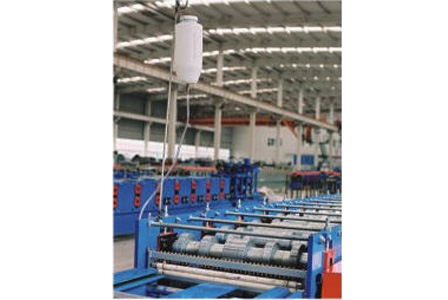

Layout of the anode plate roll forming line:

Layout of the anode plate roll forming line

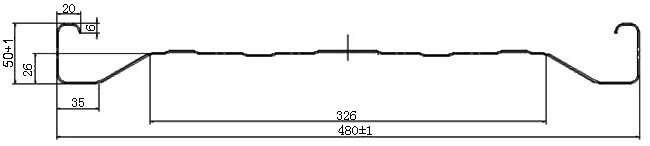

Profile drawing:

NO.	Coil width	Thickness(mm)	Effective width	Profile drawing
1	645mm	1.0-1.5	480mm
2	625mm	1.0-1.5	480mm
3	584mm	1.0-1.5	480mm
4	627mm	1.2-1.6	457mm
5	1000mm	1.0-3.0	784mm
6	608mm	1.0-1.5	480mm

Anode plate sample:

Anode plate
