Double-layer roll forming machine
Double layer roll forming line

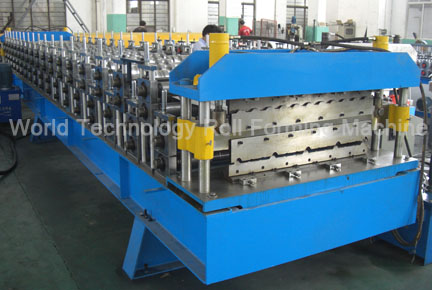

Description of 2Layer roll forming machine:
The machine can be used to produce 2 different profiles of corrugated steel sheet, e.g. 2 wall &roof sheets, or 1 wall & roof sheet and 1 floor decking sheet. Customer can choose the type. This line consists of uncoiler, cut-off unit, roll forming machine, products stacker and PLC automatic control cabinet. 1.Variable frequency speed control
2.Multi-purpose for overlap connection
3.Auto power off

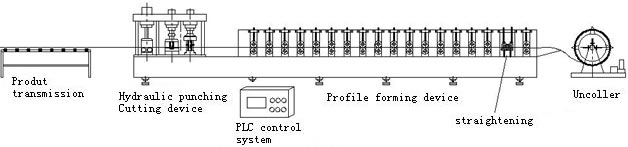

Layout of double-layer roll forming mill:
![Layout of guardrail rollformer](../img/Double-Layer Roll Forming Machine/Layout of double-layer roll forming mill.jpg)
Technical parameters of 2Layer roll forming machine:
Steel thickness: 0.4-0.8mm
Forming speed: 8-18m/min
Roller stands: 18 stands bottom layer, 16 stands top layer
Roller material: 45# steel, coated with chrome
Main motor power: 5.5kw
Hydraulic cutting power: 3kw
Hydraulic pressure: 12Mpa
Power supply: 380V 50HZ 3 phase
Tolerance: 1.5mm
Control system: PLC with touch screen
Machine net weight: 12T
Typical double layer:
![](../img/Double-Layer Roll Forming Machine/Typical double layer04.jpg)
![](../img/Double-Layer Roll Forming Machine/Typical double layer08.jpg)
![](../img/Double-Layer Roll Forming Machine/Typical double layer12.jpg)
![Double layer roll forming line](../img/Double-Layer Roll Forming Machine/Double-layer-roll-forming-machine.jpg)
Double layer roll forming line
Description of 2Layer roll forming machine:
The machine can be used to produce 2 different profiles of corrugated steel sheet, e.g. 2 wall &roof sheets, or 1 wall & roof sheet and 1 floor decking sheet. Customer can choose the type. This line consists of uncoiler, cut-off unit, roll forming machine, products stacker and PLC automatic control cabinet. 1.Variable frequency speed control
2.Multi-purpose for overlap connection
3.Auto power off
Layout of double-layer roll forming mill:
![Layout of guardrail rollformer](../img/Double-Layer Roll Forming Machine/Layout of double-layer roll forming mill.jpg)
Technical parameters of 2Layer roll forming machine:
Steel thickness: 0.4-0.8mm
Forming speed: 8-18m/min
Roller stands: 18 stands bottom layer, 16 stands top layer
Roller material: 45# steel, coated with chrome
Main motor power: 5.5kw
Hydraulic cutting power: 3kw
Hydraulic pressure: 12Mpa
Power supply: 380V 50HZ 3 phase
Tolerance: 1.5mm
Control system: PLC with touch screen
Machine net weight: 12T
Typical double layer:
![](../img/Double-Layer Roll Forming Machine/Typical double layer01.jpg)
![](../img/Double-Layer Roll Forming Machine/Typical double layer02.jpg)
![](../img/Double-Layer Roll Forming Machine/Typical double layer03.jpg)
![](../img/Double-Layer Roll Forming Machine/Typical double layer04.jpg)
![](../img/Double-Layer Roll Forming Machine/Typical double layer05.jpg)
![](../img/Double-Layer Roll Forming Machine/Typical double layer06.jpg)
![](../img/Double-Layer Roll Forming Machine/Typical double layer07.jpg)
![](../img/Double-Layer Roll Forming Machine/Typical double layer08.jpg)
![](../img/Double-Layer Roll Forming Machine/Typical double layer09.jpg)
![](../img/Double-Layer Roll Forming Machine/Typical double layer10.jpg)
![](../img/Double-Layer Roll Forming Machine/Typical double layer11.jpg)
![](../img/Double-Layer Roll Forming Machine/Typical double layer12.jpg)
