Anode plate roll forming machine

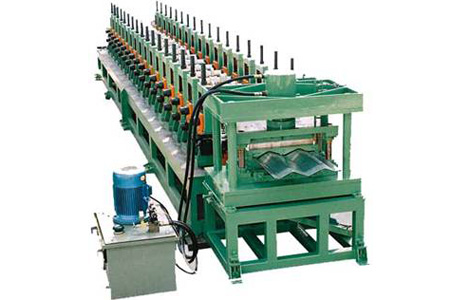

Positive plate roll forming line

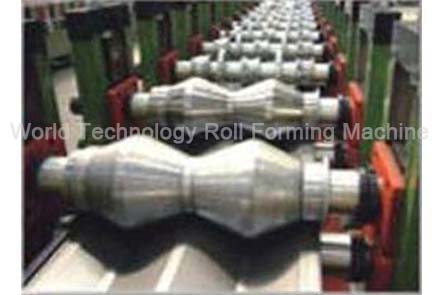

Roll part of Anode plate roll forming line

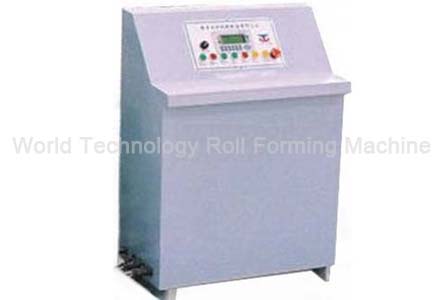

Control cabinet of Anode plate roll forming line
Positive plate roll forming line
Roll part of Anode plate roll forming line
Control cabinet of Anode plate roll forming line

Description of anode plate roll forming machine:
The line is composed by loading car, uncolier, guiding & feeding device, roll forming machine, cutter, automatic stacker, hydraulic system, electric control system.
Layout of the anode plate roll forming machine:

Layout of the anode plate roll forming line

Profile drawing:

NO.	Coil width	Thickness(mm)	Effective width	Profile drawing
1	645mm	1.0-1.5	480mm
2	625mm	1.0-1.5	480mm
3	584mm	1.0-1.5	480mm
4	627mm	1.2-1.6	457mm
5	1000mm	1.0-3.0	784mm
6	608mm	1.0-1.5	480mm

Anode plate sample:

Anode plate
