Z purlin roll forming machine

Z purlin roll forming machine

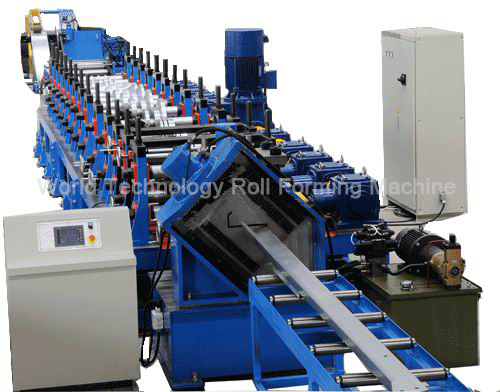

Description of Z purlins roll forming machine:
The Z purlin roll forming line consists of decoiler, leveling machine, hydraulic punching device, roll forming machine, cut-to-length device and collection table.

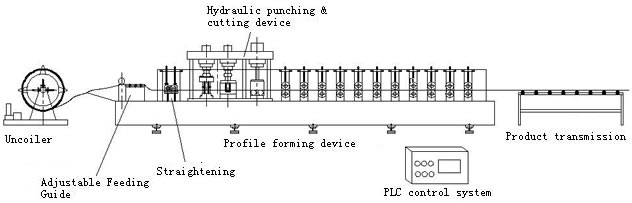

Layout of Z purlin rollformer:

Technical parameters:
Coil width: 100-500mm
Coil thickness: 1.0-3.0mm
Production speed: 0-15m/min
Total power: about 30kw
Floor area: length 18m * width 3m
Power: 380V/415V, 50HZ

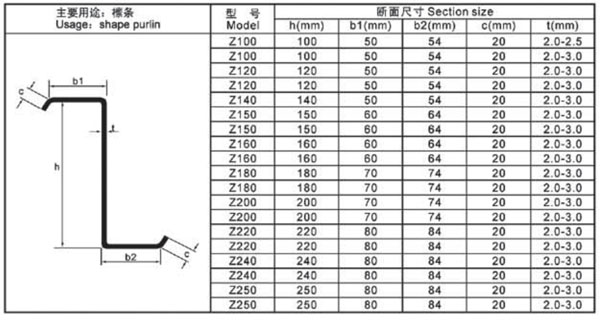

Z shape purlin specification:
