Downspout roll forming machine
Rainspout roll forming machine

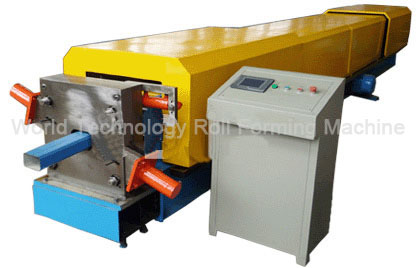

Description of rainspout roll forming machine:
Our World Technology Machinery downspout roll forming machine mainly consists of decoiler, roll forming system,cutting equipment, protective guard, hydraulic system, control system and out table. It can make curve for down pipe to meet the requirement of practical engineering projects.
Technological process of downpipe roll forming machine:
Uncoiling---Feeding---Leveling---Punching----Roll forming---Cutting---Products collecting
Technical parameters:
Steel thickness: 0.5-0.8mm
Forming speed: 8-10m/min
Roller stands: 20 stand
Roller material: 45# steel, coated with chrome
Main motor power: 3kw
Hydraulic cutting power: 7.5kw
Hydraulic pressure: 12Mpa
Power supply: 380V 50HZ 3 phase
Tolerance: 1.5mm
Material of cutting: Cr12
Control system: PLC with touch screen
Machine net weight: 10T
Typical downspout:

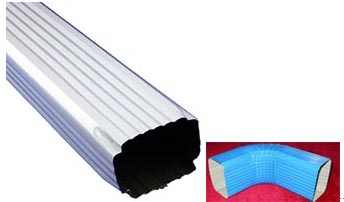

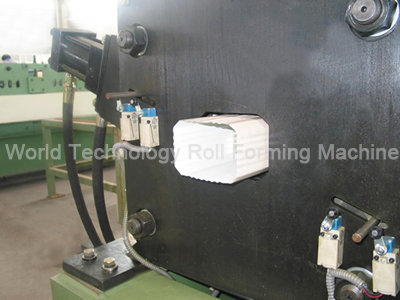

Roll formed rainspout Downspout
Downspout application:

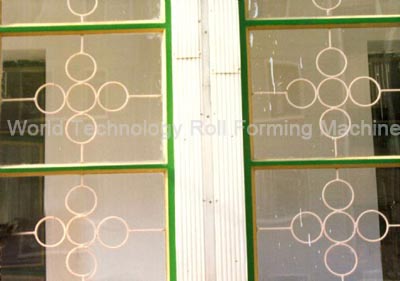

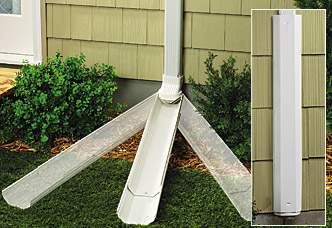

Rainspout for window Downspout for house
