Glazed steel tile roll forming machine
Description of roof tile roll forming machine:
The roofing tile products are formed by cold roll forming machine from high quality coated sheet, which performs the elegant style of traditional roof tile and suits for every architecture design. With light, strong strength and long lasting quality, it is convenient and takes short time for installation.
The machine is for continuously roll forming and pressing step tiles on series of product profile. The length can be set up or unlimited and the depth of each step is from 10 to 30mm adjustable.
This roofing tile roll forming line consists of hydraulic single head type uncoiler, roll forming main machine, hydraulic forming tile machine, hydraulic automatic cutting machine, products run out table, PLC automatic control cabinet.
Dlazed steel tile designed drawing

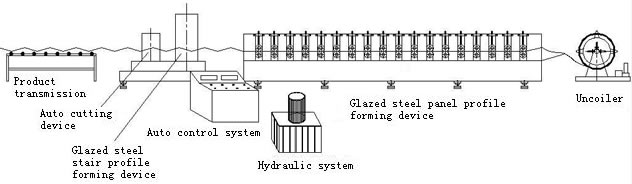

Producing process sketch of glazed steel tile roll forming machine:
Technological process of glazed tile roll forming machine:
Uncoiling---Feeding---Leveling---Punching---Roll forming---Cutting---Products collecting
Technical parameters:
Number of stations: 16-25 stations
Length of step: 150-500mm
Depth of step: 10-30mm
Forming speed: 32 steps / min(flying press) or 20 steps / min
Steel thickness: 0.5-0.6mm
Roller material: 45# steel, coated with chrome
Main motor power: 5.5kw
Hydraulic cutting power: 4kw
Power supply: 380V 50HZ 3 phase
Tolerance: 1.5mm
Control system: PLC with touch screen
Typical glazed steel tile:
Green glazed steel tile Orange glazed tile Red glazed steel tile
Roof tile application:
Glazed steel tile for building Glazed steel tile for room Glazed tile for house

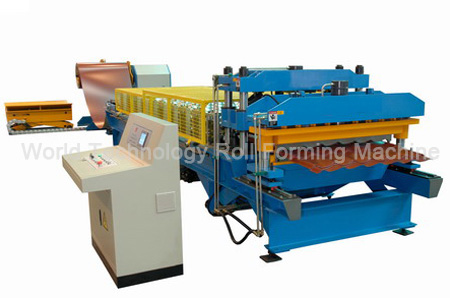

Galzed steel tile roll forming machine

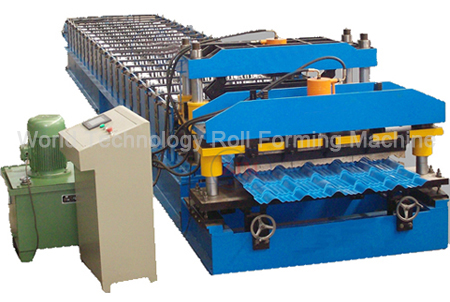

Glazed steel tile roll forming mill

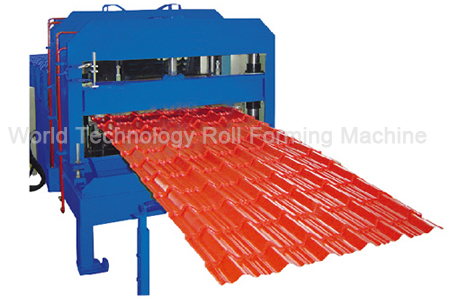

Glazed tile roll forming machine
Glazed steel tile roll forming mill
The roofing tile products are formed by cold roll forming machine from high quality coated sheet, which performs the elegant style of traditional roof tile and suits for every architecture design. With light, strong strength and long lasting quality, it is convenient and takes short time for installation.
The machine is for continuously roll forming and pressing step tiles on series of product profile. The length can be set up or unlimited and the depth of each step is from 10 to 30mm adjustable.
This roofing tile roll forming line consists of hydraulic single head type uncoiler, roll forming main machine, hydraulic forming tile machine, hydraulic automatic cutting machine, products run out table, PLC automatic control cabinet.
Dlazed steel tile designed drawing
Producing process sketch of glazed steel tile roll forming machine:
Technological process of glazed tile roll forming machine:
Uncoiling---Feeding---Leveling---Punching---Roll forming---Cutting---Products collecting
Technical parameters:
Number of stations: 16-25 stations
Length of step: 150-500mm
Depth of step: 10-30mm
Forming speed: 32 steps / min(flying press) or 20 steps / min
Steel thickness: 0.5-0.6mm
Roller material: 45# steel, coated with chrome
Main motor power: 5.5kw
Hydraulic cutting power: 4kw
Power supply: 380V 50HZ 3 phase
Tolerance: 1.5mm
Control system: PLC with touch screen
Typical glazed steel tile:
Green glazed steel tile Orange glazed tile Red glazed steel tile
Roof tile application:
Glazed steel tile for building Glazed steel tile for room Glazed tile for house
