Octagonal pipe roll forming machine
Octagon pipe roll forming machine line component:
1. Decoiler, 1 set
2. Feeeding guiding device, 1 set
3. Roll forming machine, 1 set
4. Hydraulic cutting device, 1 set
5. PLC control box, 1 set
6. Product racks, 3 sets
Main technical parameters:
Spec: 40mm, 60mm, 70mm, 80mm
Material thickness:0.4mm-1.2mm
Forming speed:3-8m/min
Forming step: 22 steps
Shaft diameter: 60mm
Roller material: Gcr15, with quenching, HRC 58-62
Roller shaft diameter: 40Cr steel with treatment
Dimension: 7500*1200*1200mm
Main power: 7.5KW
Hydraulic cutting
For quotation with detail specification, please send us drawing .We can make machine according to your profile. During the warranty period, maintain and change the spare parts for the customers for free (except for the instrument damage caused by human factors or natural disasters.) And provide technical support for life-long. Packaging detail: No packing. the 40GP container can contain the machine and some auxiliary equipment.
Typical profile drawing of octagon pipe:

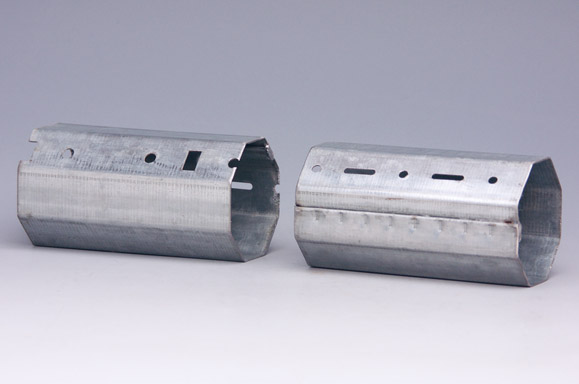

Roll formed octagonal tube product:

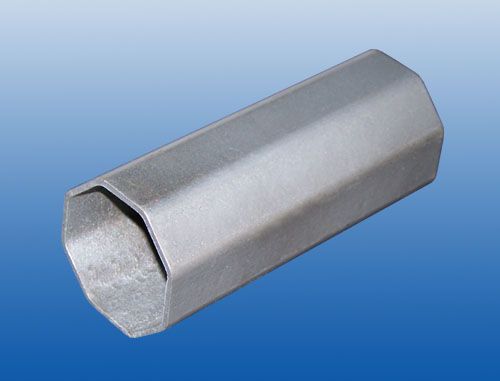

Octagonal pipeRoll formed octagon pipe

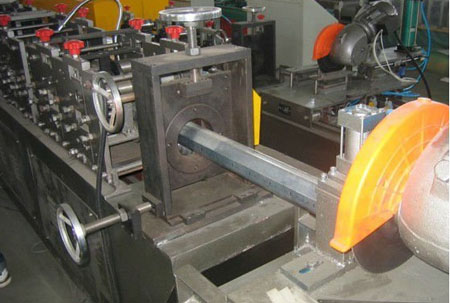

Octagonal tube roll forming machine
Octagon pipe roll forming machine

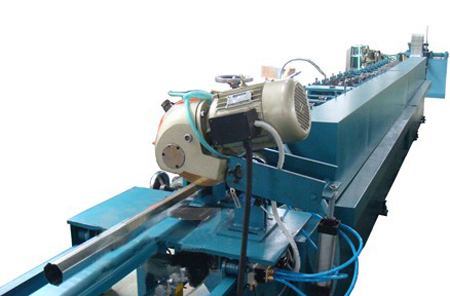

Octagonal pipe roll forming machine

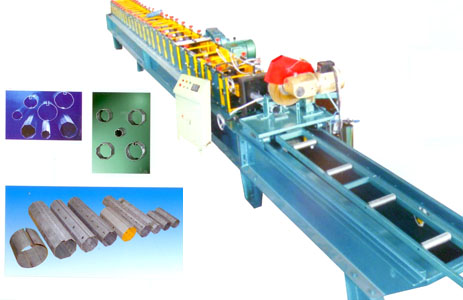

Octagon tube roll forming machine
Octagon pipe roll forming machine

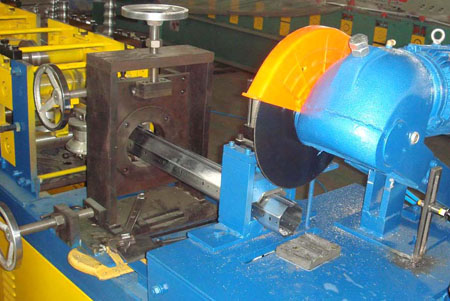

Octagonal tube roll forming machine
