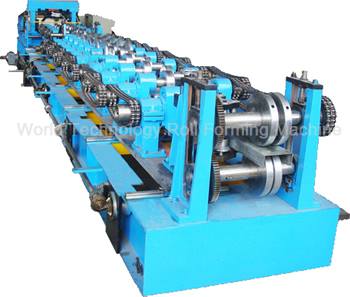

C/Z purlin interchangeable roll forming machine

C/Z purlin roll forming machine
Description of C/Z purlin roll forming machine:
ANBER C/Z purlin interchangeable Roll Forming Machine adopting integrated adjustment with unique design can provide quick, infinite size change and C rapid shape roller to Z shape roller change, which simplifies the process of it.
Layout of C/Z purlin roll forming machine:

Layout of C/Z purlin roll forming machine

Technical parameters:
Purlin specification: 100-300mm
Steel thickness: 1.6-3.0mm
Forming speed: 10-12m/min
Roller stands: 20 stand
Material of roller: GCr15
Main motor power: 15kw
Hydraulic power: 11kw
Hydraulic pressure: 15-20Mpa
Power supply: 380V 50hz 3 phase
Tolerance: 1.5mm
Material of cutting: Cr12
Control system: PLC with touch screen
Net weight of machine: 14T
