Floor deck roll forming nachine

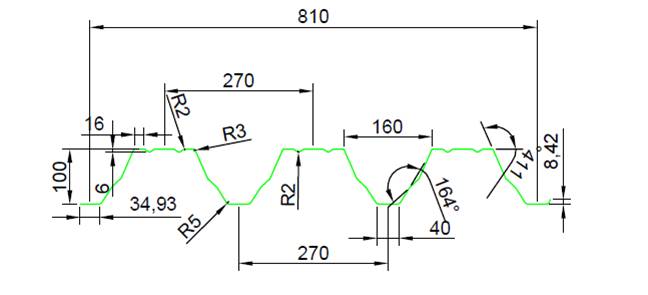

Profile drawing:

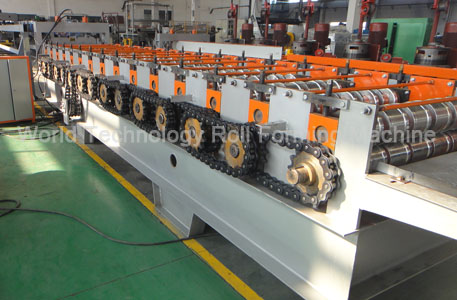

10T Hydraulic de-coiler

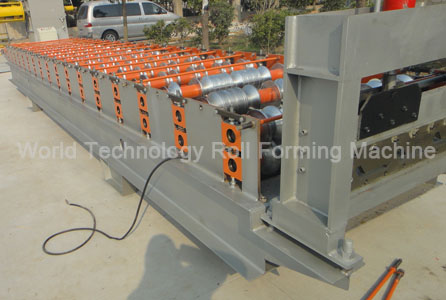

Wall panel cold roll forming machine

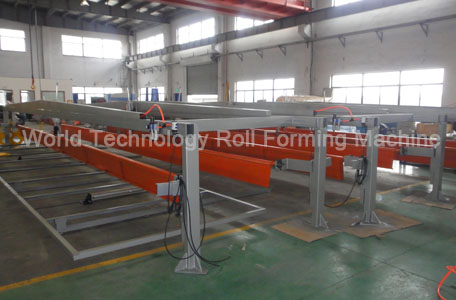

Automatic run-out table

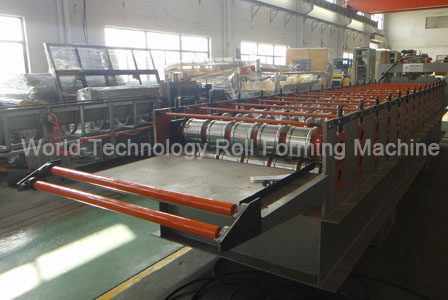

Steel wall panel roll forming machine
steel wall panel roll forming machine
Description of floor deck roll forming nachine:
Steel structural floor panel is the type of steel construction material with character of low light, hard, easy to install, which extensively apply in constructing skyscraper, residential building and bridge. Our World Technology Machinery steel structural floor panel with the feature of reliable, convenient operation, automatic can be used in various steel structural floor panels forming.
Main technical parameters:
1 General
1). Thickness of steel coil: 0.7-1.25mm
2). Material: PPGI, GI
3). Input width: 1220mm
4). Output width: 810mm
5). Total length (from de-coiler to output table): about 18M
6). Tolerance of length: 10±2mm
7). Transporting: 1×40ft Container
2 Main roll forming machine
1). Machine stand: 350H steel welding structure
2). Guide feed way: side sliding type
3). Structure: wall panel, thickness 14mm
4). Number of stations: 24 stations
5). Main shaft material: 45# steel, O.D.: 90mm, quenching and tempering treatment
6). Roller material: high grade 45# steel, quenching 58-62℃
7). Way of drive: by chain
8). Forming speed: 8m/min
9). Main motor power: 18.5kw
10). Power supply: 380V, 50HZ or at buyer’s requirement, 3-Phase
11). Motor is under the mould, which can save space
12). Dimension (L*W*H): 6.7×1.7×1.3m
3 Hydraulic cutter
1). Material of blade and mould: Cr12MoV steel with quenched treatment 60-62℃.
2). Cutting system: adopt advanced hydraulic cutting system, automatic cut after forming no distortion, waste, high safe factor(main motor stops and then cuts).
3). Cutting type: stop machine cutting.
4 Electrical system
1). Screen display: Mitsubishi or Siemens touch screen;
2). PLC: Mitsubishi or Siemens;
3). Measure the length automatically;
4). Count the quantity automatically;
5). Length and quantity is controlled by computer, the machine will cut automatically as reaching the set length, the machine can automatic stop;
6). It is easy to adjust the error of length;
7). Meter count way: rotary encoder;
5 Hydraulic system
1). YUKEN system, made in China;
2). Power: 5.5KW;
3). Oil pump of hydraulic station: gear pump;
4). Hydraulic cylinder: 100mm;
5). Structure of cutting: size of hydraulic station 55×65×90mm;
6). 1 set of electro valve;
7). The oil pipe can not be welded type (protective of oil leak), treatment of welding spot of total machine.
Line composition
De-coiler; Roll Forming Machine Unit; Hydraulic Automatic Cutting Unit; Run Out Table; PLC Control Cabinet; Electrical system; Hydraulic system.
Technical process
De-coiler→ Feed with guide→ Roll forming→ Hydraulic cutting unit→ Run-out table→ PLC control system
Picture gallery:

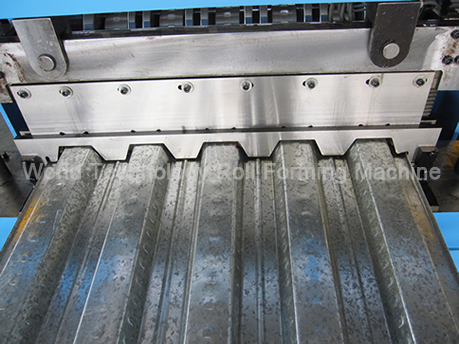

Forming part of floor decking roll forming mill
Typical floor decking:
Floor deck Floor decking Metal floor deck Steel floor decking

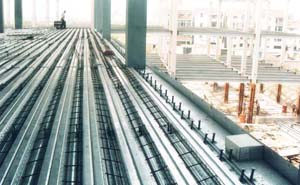

Application of steel floor deck:
Steel floor deck
