C purlin roll forming machine

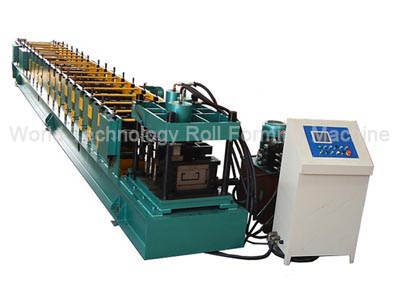

C purlin roll forming machine
Description of C purlin roll forming machine:
The C purlin roll forming line consists of decoiler, leveling machine, hydraulic punching device, roll forming machine, cut-to-length device and collection table.

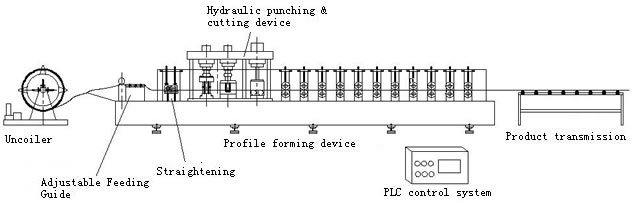

Layout of C purlin rollformer:

Technical parameters:
Coil width: 100-500mm
Coil thickness: 1.0-3.0mm
Production speed: 0-15m/min
Total power: about 30kw
Floor area: length 18m * width 3m
Power: 380V/415V, 50HZ

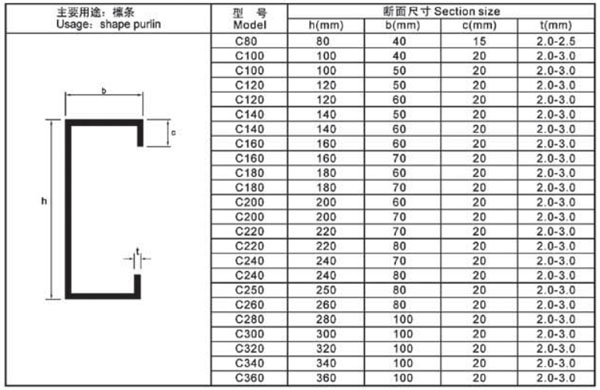

C purlin specification:

Typical C purlins:

C purlin Roll formed c purlin Steel c purlin
