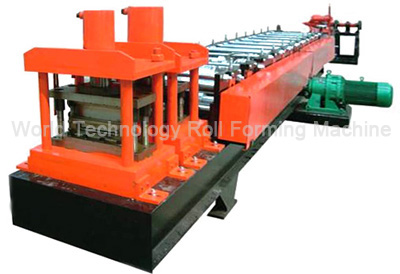

Groovy bridge roll forming line

Groovy bridge roll forming line
Description of groovy bridge roll forming line:
The production line incloudes uncoiler, leveler, feeding device, punching equipment, punching die(punch hole, press pattern and cutter), final product rack, electric control system.
Layout of the groovy bridge roll forming line:
Layout groovy bridge roll forming line

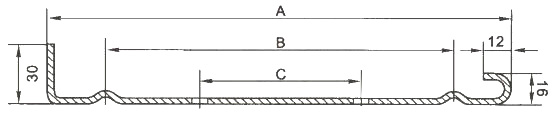

Technical parameters:
Technical groovy bridge roll forming line

Model	Size(mm)		Hole space(mm)	Coil width(mm)
Model	A	B	C	L
ABE-GB200	200	150	90	245
ABE-GB150	150	100	60	195
ABE-GB100	100	50	20	145

Groovy tray sample:

Groovy bridge
