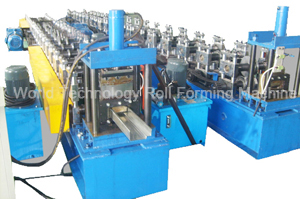

Door frame roll forming machine
Door frame roll forming machine
Description of roll forming machine for door frame:
This door frame roll forming machine consists of uncoiler, hydraulic punching hole & angle, roll forming machine, straightener, auto cutting machine, computer control system, and products run out table.

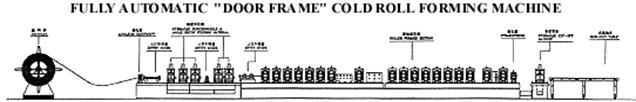

Layout of the whole door frame roll forming line:
Main technical specifications of door frame roll forming machine:
Steel thickness: 0.6-1.8mm
Forming speed: 3-6m/min
Roller stands: 18 stand
Roller material: 45# steel, coated with chrome
Main motor power: 11kw
Hydraulic cutting power: 4kw
Hydraulic pressure: 10Mpa
Power supply: 380V 50HZ 3 phase
Tolerance: 1.5mm
Material of cutting: Cr12
Control system: PLC with touch screen
Machine net weight: 8T

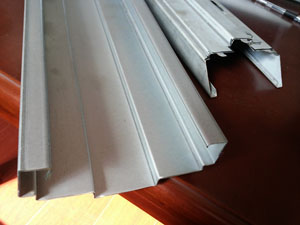

Typical roll formed door frame:
Door frame

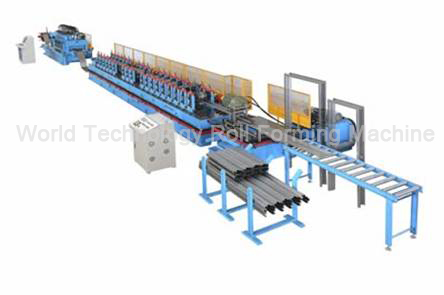

Door frame roll forming machine
