Automatic roll shutter slats forming machine
Roll shutter slat forming machine description:
This roll forming machine is for producing aluminum shutter door & window slats with foam-filled, Our Roll-forming lines complete with the tooling suitable to produce the foamed rolling shutter profiles in different sizes, inline foaming, punching and cutting to length operations. Lines for high density or low density foamed profiles.
Insulated roller shutter products description:
The versatile rolling shutters door and window coverings that have been widely used in Europe for over 100 years. They offer energy savings, privacy and security, while enhancing the value and beauty of the home. Although insulated rolling shutters are associated with security and sun control, they can also decrease dust, noise and sun damage to furniture, draperies and carpets. Rolling shutters now have become extremely popular not only in Europe, but around the world. In many European countries, such as Germany, Italy, France and Spain, roll shutters are a standard feature on homes and businesses. The roll shutter business has grown to become a multi-billion dollar industry. The products’ popularity has spread to the Middle East, Australia, South America and to the United States.
Technical process:

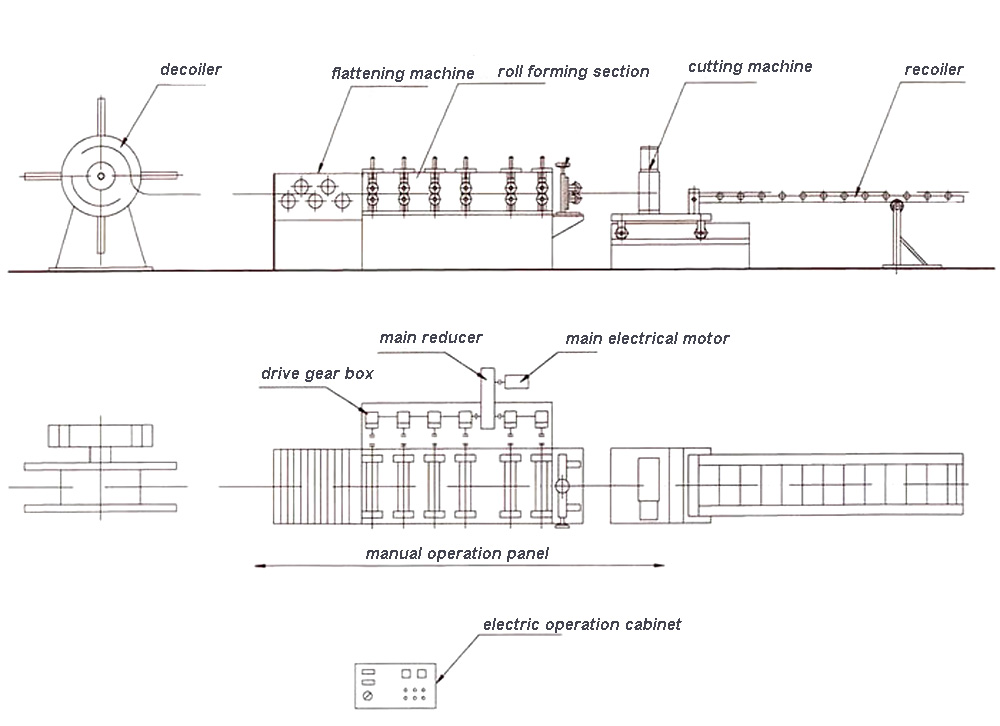

Double head decoiler---Feeder guide---roll forming---PU injection---Punching---Pneumatic flying saw cutting---Run out table
Polyurethane rolling shutter slats roll forming machine components:
Double-side unwinding frame, main roll forming machine, PU foam-filled device, pneumatic cutting machine, pneumatic punching machine, automatic PLC control system, run out table
Technical parameters:
Line structure: Portal-type frame style,45# steel
Steel thickness: 0.3-0.5mm
Steel width: 117-310mm
Forming roller stations: 41 stations
Forming rollers: Gcr15, quenching,hardness HRC56-62°
Forming speed: 0-7m/min
Main motor power: 11kw
Cutting mode: Automatic cut-to-length control
Windows shutter application:

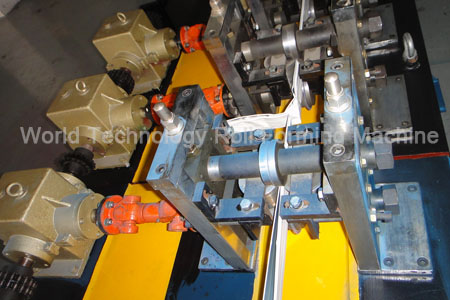

Polyurethane rolling shutter slats forming machine

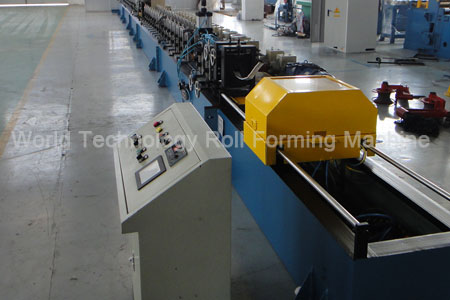

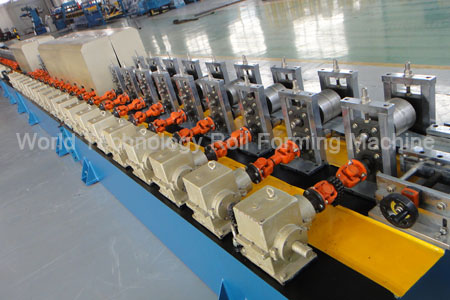

Rolling shutter slats forming machine
Rolling shutter slats roll forming machine

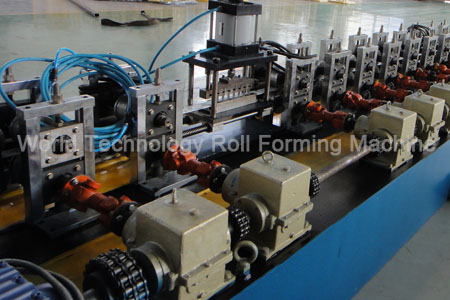

Automatic polyurethane rolling shutter slats forming machine

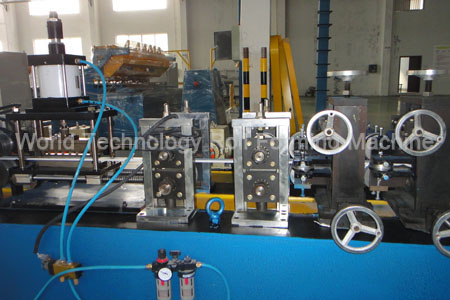

Automatic rolling shutter slats forming machine

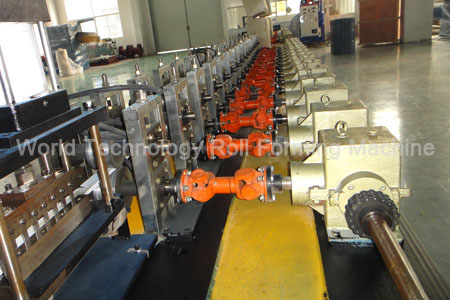

Automatic roll shutter slats forming machine
