Shelves roll forming machine
Description of shelves roll forming machine:
This shelf roll forming machine is fully automatic and high speed producing continuously, one set of forming rolls can produce various sizes of shelves just by simply changing the width and length settings on the control screen then machine will be adjusted by servo motor to get the correct products.
The machine can be also complying with in line punching and bending-over to reduce the cost caused by the 2nd process. Main motor is AC motor with inverter to achieve high-speed massive producing. Quick or slow speed can be adjusted freely. In the end of the line there is a cut-off plus bending-over device to make the last process and the tolerance of the products length can be within ±1mm.
This shelf roll forming line consists of uncoiler, hydraulic pre-punching/notching init, roll forming machine, hydraulic automatic cut-off-bend-over unit, products run-out table, hydraulic automatic bending unit, PLC automatic control cabinet.
Technical parameters of shelf roll forming mill:
Roller stands: 16-24 stand
Length of step: 150-500mm
Forming speed: 6 pcs per minute
Typical roll formed shelves:

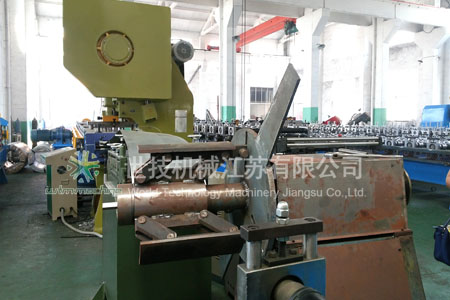

Roll formed shelves Roll forming machine for shelves
Shelves application:

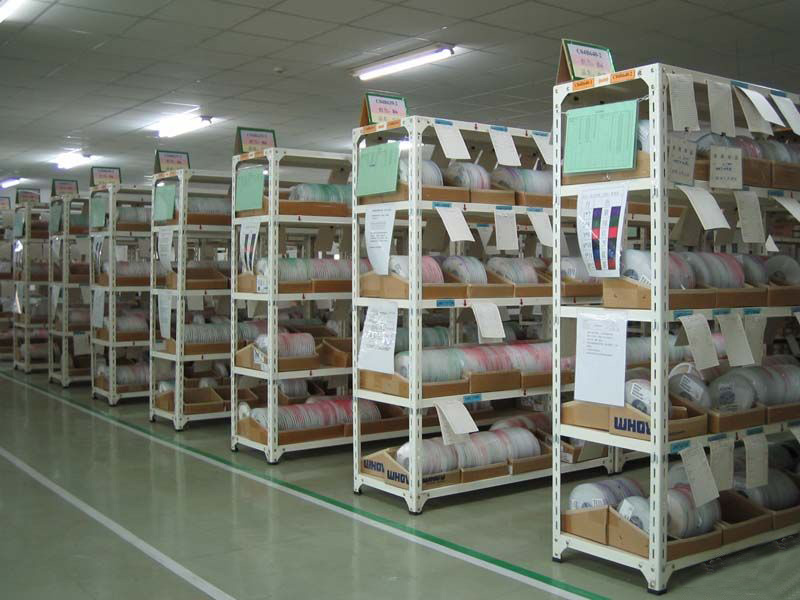

Shelves in supermarket Shelves in library

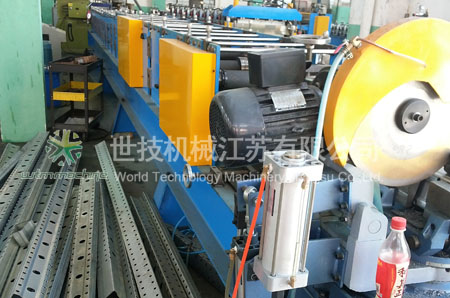

Shelf roll forming mill
Shelves roll forming machine

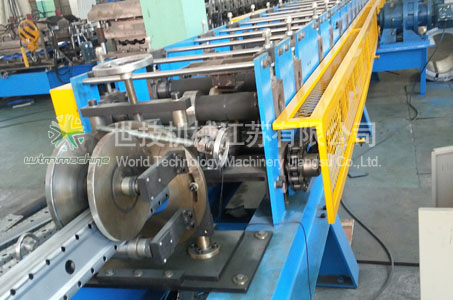

Shelf roll forming production line
